Model PRO-SHDU
This model provides a rugged mechanical design ideal for the harsh environment.

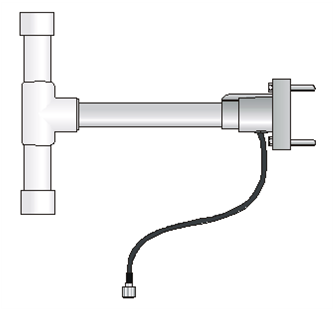

The dipole assembly is housed in a UV protected PVC plastic radome. The centre feed is taken out through a ‘tee’ attached to a 38mm OD x 3mm wall anodised aluminium boom. A RG213 coax tail is fed down the centre of the boom. The PRO-SHDU dipole is supplied with a fitted End Mount Clamp designed for mounting to a vertical 48mm OD tube.
A reflector element can be added to this design to produce a two element shrouded yagi which has a gain of 3dB.
