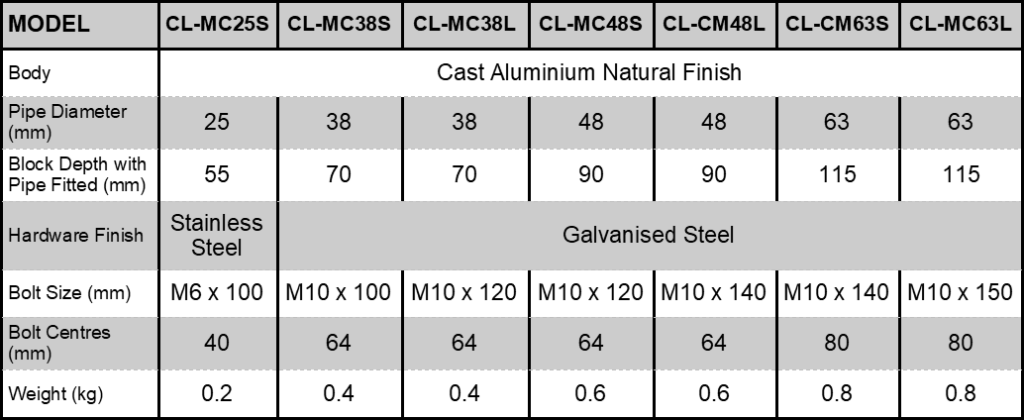

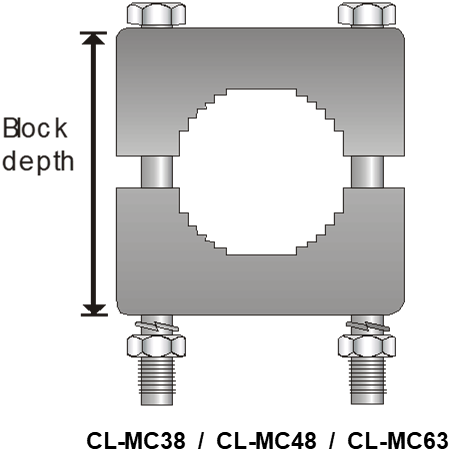

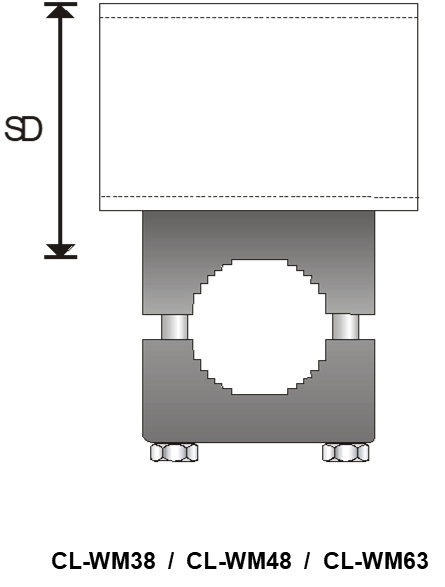

Mounting Clamp
Models CL-MC25, CL-MC38, CL-MC48 & CL-MC63
This range of clamps uses two cast aluminium saddle blocks held with steel bolts.
They can be used to mount pipe or antenna booms to a flat surface, eg. flat plate, tower legs etc.
Clamps with long bolts are included with aerials, while clamps with short bolts are for clamps purchased by themselves. If ordering without an aerial but require long bolts please let us know or use the L codes when ordering.

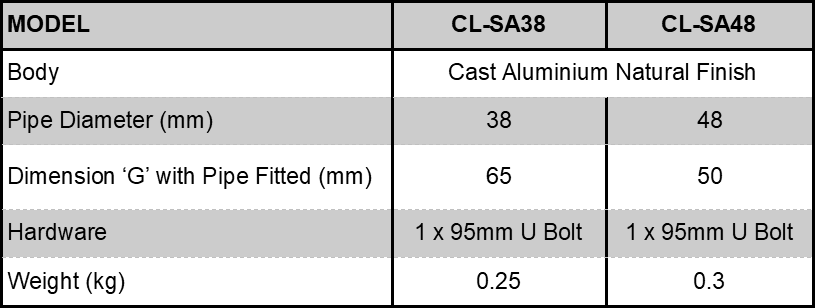

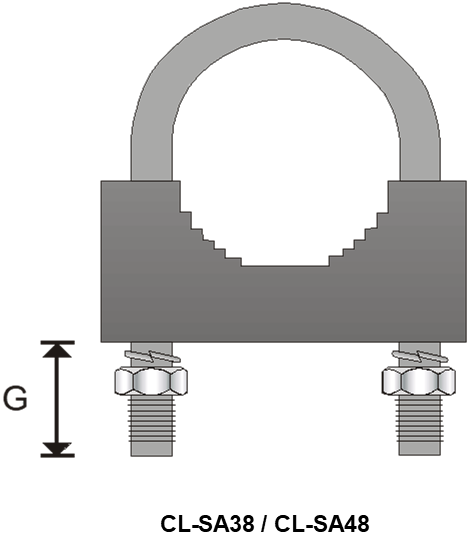

Saddle Clamp
Models CL-SA38 & CL-SA48
These clamps are a cast saddle with a U bolt for clamping tubes. Designed to mount aerials to 48mm and 38mm tubing. The saddles are made of cast aluminium with a natural finish. The U bolts are 8mm stainless steel fitted with M8 nuts and spring washers. A 95mm U-bolt is fitted as standard.

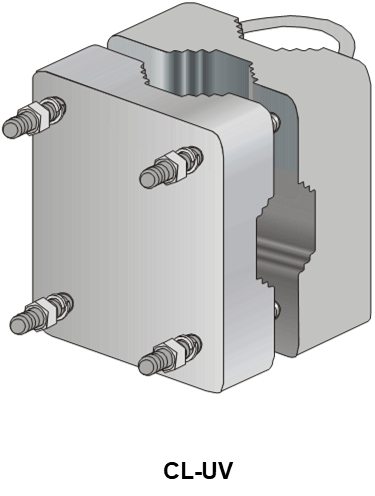

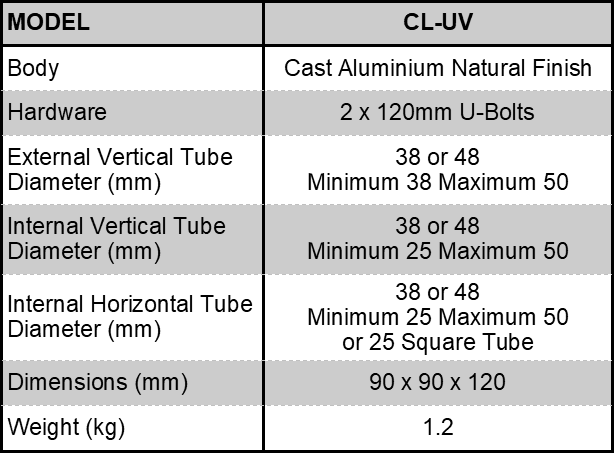

Universal Clamp
Model CL-UV
This universal clamp is a heavy duty mounting clamp. It enables aerials to be mounted either in line vertically, or horizontally mounted to vertical or horizontal tubes/pipes. It will also accept the 25mm square booms of our yagis and folded dipoles.

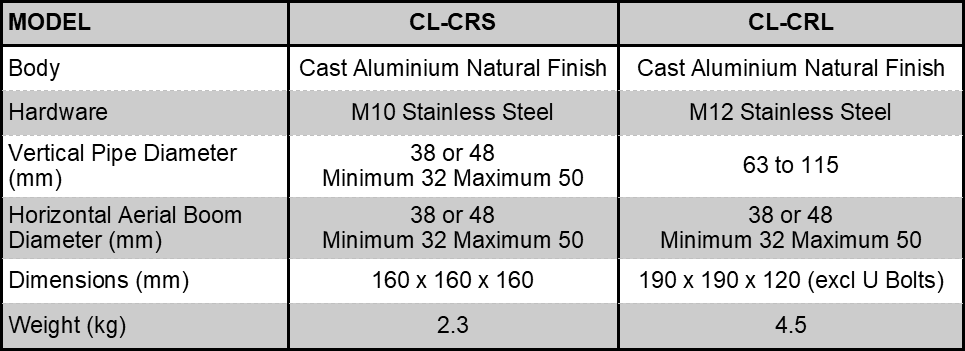

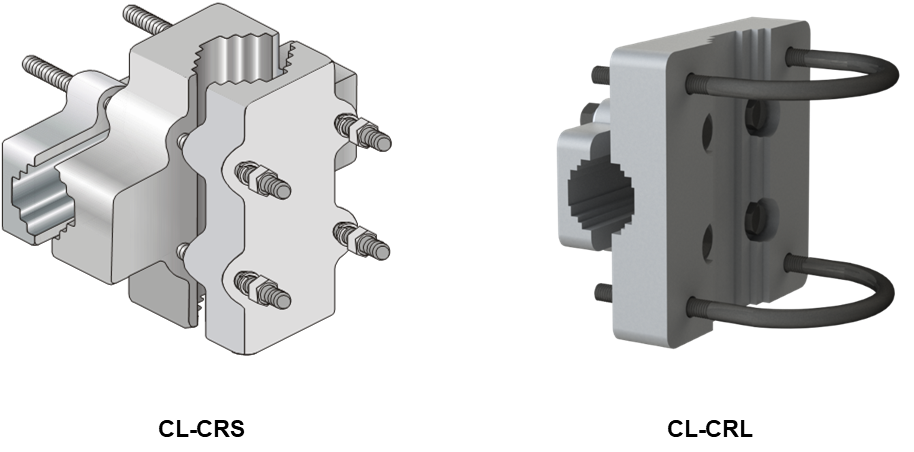

Cross Clamps
Models CL-CRS & CL-CRL
Convenient heavy duty mounting clamps to mount a horizontal aerial boom to a vertical support.
The smaller clamp has been designed with the site installer in mind. The centre section of the clamp is drilled and tapped, which allows one side of the clamp to be assembled onto the boom before fitting the antenna onto the mounting tube.
The larger clamp has been designed following the same philosophy as the smaller cross clamp. With the rugged U Bolts large enough to go around a pipe from 63mm right up to 115mm, it’s a great new clamp solution for larger rigging.

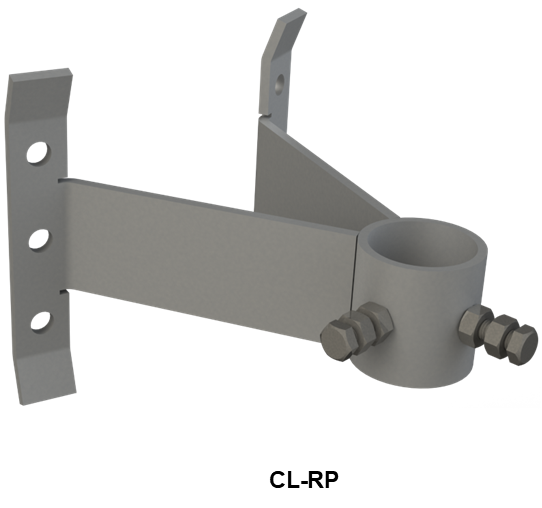

Rigging Pipe Clamp
Model CL-RP
Designed to mount rigging pipes to vertical wooden poles. It enables 48mm OD pipe (2” galvanised water pipe) to be mounted with a 150mm offset from a wooden pole.
The connection to the wooden pole is either by coach screws or band-it straps. A hole is provided opposite the securing nut to enable a through bolt to be fitted to the lowest clamp.
Pole Mount Clamp
Models CL-PM38 & CL-PM48
Designed to mount yagis or dipoles to a wooden pole. The clamp is ruggedly constructed and is fixed to the pole with adjustable chains, or with bolts. The aerial boom is easily clamped horizontally to the Pole Mount using saddle blocks bolted to its frame. A complete kit is supplied ready for installation.

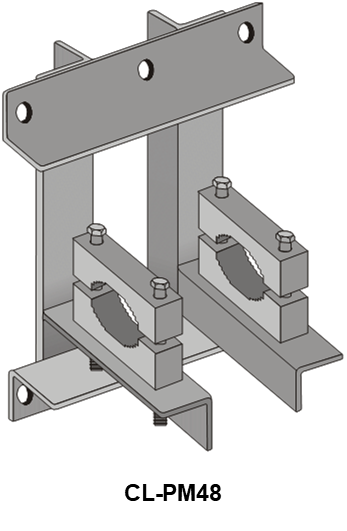

Vertical Pole Mount Clamp
Models CL-VPM, CL-VPM25, CL-VPM38 & CL-VPM48
Designed to mount collinears to the top of a pole or dipoles to a wooden pole. The clamp is ruggedly constructed and is fixed to the pole with either bolts or coach bolts (not supplied).
A collinear can be easily clamped vertically to the pole mount using saddle blocks.
Alternatively two dipoles can be mounted horizontally.
This system can also be used to mount and stand off rigging pipes on wooden poles.
Round Back End Mount Clamp
Model CL-EM-RB
Designed for mounting our UHF shrouded dipoles to a vertical or horizontal 48mm OD tube. The mount comes complete with stainless steel U bolts as standard. As an alternative, it can be fixed directly against a flat wall by bolting through the U bolt holes.
Wall Mount Clamp
Models CL-WM38, CL-WM48 & CL-WM63
The wall mounts are designed for mounting vertical tubes or pipes to a vertical wall. The wall mount is available with mounting clamps to suit 38, 48 or 63mm OD tubes. These mounts can be used for either vertical or horizontal supports.
